An electric circuit is a closed path or loop through which electrons flow, creating an electric current. Circuits are the backbone of electrical systems, enabling devices such as bulbs, fans, computers, and motors to function.
The basic components of a circuit include:
- Power source (e.g., battery, generator)
- Conducting wires
- Switch (to control the circuit)
- Load (device like a bulb, fan, or resistor)
There are many types of electrical circuits, each with unique properties and applications. Let’s explore them in detail.
What is an Electric Circuit?
An electric circuit is a pathway for electricity to move and perform tasks such as lighting, heating, or powering machines.
- A circuit can be open (no current flow) or closed (continuous current flow).
- Current, voltage, and resistance are the main parameters that define circuit behavior.
- Circuits may operate on Direct Current (DC) or Alternating Current (AC) depending on the source.
Types of Circuits
1. Open Circuit
- Definition: A broken or incomplete path; current cannot flow.
- Key Features: Switch “OFF,” no device operation.
- Example: A bulb that doesn’t glow because the switch is off.
✅ Advantage: Safe, prevents current flow.
❌ Disadvantage: No operation of devices.
2. Closed Circuit
- Definition: A complete loop where current flows uninterrupted.
- Key Features: Switch “ON,” continuous current.
- Example: A fan or bulb switched on.
✅ Advantage: Devices function as intended.
❌ Disadvantage: Risk of overload if too many devices are connected.
3. Short Circuit
- Definition: An unintended path for current flow, usually due to contact between wires.
- Key Features: Sudden surge of current, sparks, or overheating.
- Causes: Damaged wires, loose connections, faulty devices.
⚠️ Danger: Can cause fires, electric shocks, and device damage.
Prevention: Use proper insulation, fuses, and circuit breakers.

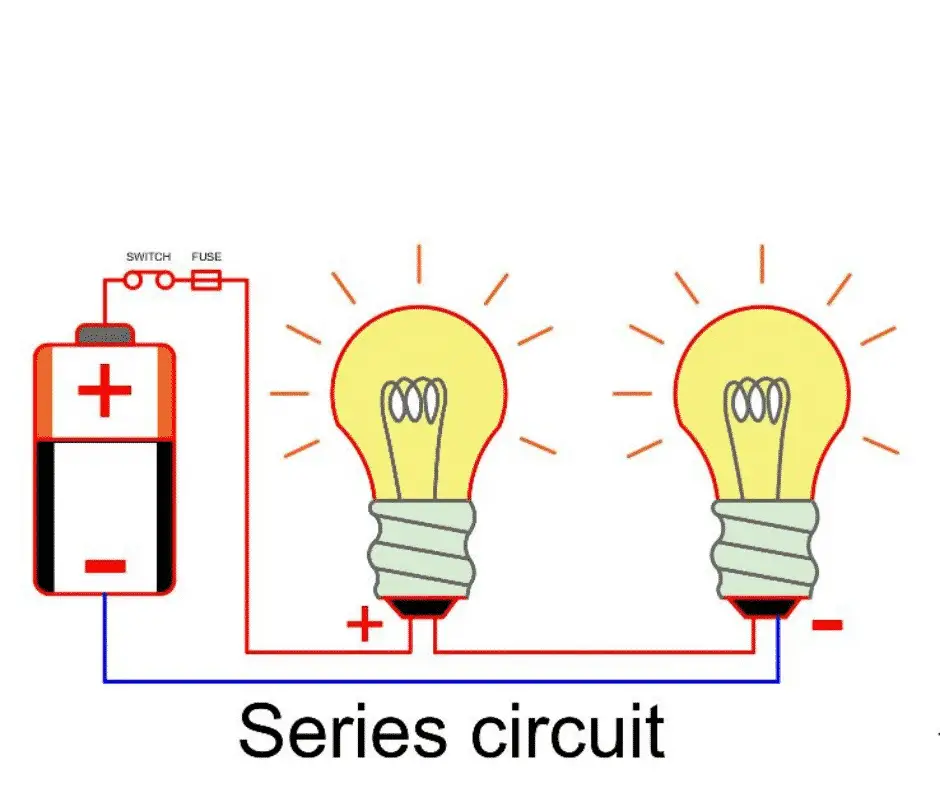

4. Series Circuit
- Definition: Components connected one after another in a single loop.
- Features:
- Current is the same through all components.
- Voltage divides among devices.
- Total resistance: Total=R1+R2+R3+…
- Example: Old Christmas lights, torchlight.
✅ Advantage: Simple design.
❌ Disadvantage: If one component fails, the whole circuit stops.
5. Parallel Circuit
- Definition: Components connected across multiple paths.
- Features:
- Voltage is the same across all branches.
- Current divides among paths.
- Total resistance decreases: 1/Rtotal=1/R1+1/R2+…
- Example: Household wiring system.
✅ Advantage: Independent operation of devices.
❌ Disadvantage: More complex wiring.
6. Series-Parallel Circuit
- Definition: A combination of series and parallel connections.
- Example: Automobiles, computers, and home appliances.
✅ Advantage: Flexible, reliable, and efficient.
❌ Disadvantage: More complex to design.
7. AC Circuit
- Definition: Powered by Alternating Current (AC), where current changes direction periodically.
- Features:
- Voltage and current vary sinusoidally.
- Frequency (50 Hz in India).
- Components: Resistors, capacitors, inductors.
- Examples: Household power supply, industrial machines.
✅ Advantage: Efficient for long-distance transmission.
❌ Disadvantage: More dangerous at high voltages.
8. DC Circuit
- Definition: Powered by Direct Current (DC), where current flows in one constant direction.
- Features:
- Steady voltage and current.
- Powered by batteries, solar cells, or DC generators.
- Examples: Smartphones, laptops, electric vehicles.
✅ Advantage: Stable, easy to store in batteries.
❌ Disadvantage: Not ideal for long-distance transmission.
9. Star-Delta Circuit
- Definition: A special type of circuit used in three-phase power systems.
- Application: Motor starters in industries to reduce starting current.
10. Linear Circuit
- Definition: Current and voltage follow a linear relationship (Ohm’s Law).
- Example: Purely resistive circuits.
11. Non-linear Circuit
- Definition: Current and voltage relationship is not linear.
- Example: Circuits with diodes or transistors.
12. Unilateral & Bilateral Circuits
- Unilateral Circuit: Current flows in one direction only (e.g., diode circuits).
- Bilateral Circuit: Current can flow in both directions (e.g., resistive circuits).
Quick Summary for Exams
- Series Circuit → Same current, voltage divides.
- Parallel Circuit → Same voltage, current divides.
- Closed Circuit → Current flows, devices work.
- Open Circuit → Current doesn’t flow, devices don’t work.
- Short Circuit → Dangerous, high current surge.
- AC Circuit → Alternating current (household power).
- DC Circuit → Direct current (batteries, electronics).
Final Thoughts
Electrical circuits form the foundation of modern technology, from a simple torchlight to the most advanced computers and power grids. Understanding the types of circuits helps in grasping how electricity powers our daily lives and prepares students for competitive exams.
